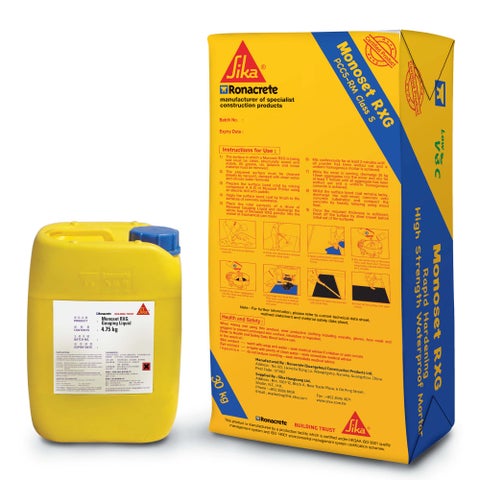

Monoset® RXG

Monoset® RXG

Rapid Hardening Polymer Modified Waterproof Concrete

Monoset® RXG is a prepacked polymer modified waterproof concrete designed for repairing existing floors or laying new floors where waterproofing and speed of strength gain is of paramount importance. Monoset® RXG is manufactured from a blend of non-shrink cements, rapid hardening fillers and waterproofing admixtures. Monoset® RXG will achieve a monolithic bond to most cementitious substrates and will accept heavy traffic within two hours of placement. The performance of the product is certified under the Hong Kong Concrete Institute (HKCI) Product Conformity Certification Scheme for Repair Mortars (PCCS-RM) Class S and is suitable for repairs to concrete with a characteristic strength (fcu) up to at least 33 MPa.

  • High early strength gain
  • Reduce down time and disruption
  • Water based low odour formulation
  • Excellent waterproofing characteristics
  • Conforms to Hong Kong Highways Department specification
  • Low VOC
Product Data Sheet Show all documents

Usage

  • Driveways
  • Carparks
  • Loading bays
  • Roadways
  • Bridges


Advantages

  • High early strength gain
  • Reduce down time and disruption
  • Water based low odour formulation
  • Excellent waterproofing characteristics
  • Conforms to Hong Kong Highways Department specification
  • Low VOC

Packaging

34.75 kg per pack (30 kg bag of powder & 4.75 kg drum of liquid)

Colour

Concrete grey

Product Details

Product Information

Product Declaration

Characteristics For Repair Mortar (from PCCS-RM CI. 5.1 Table 1)

Test Method

Test

Description

Age at TestPCCS-RM
Specification
(Class S fcu 33)

Monoset® RXG

Typical
Performance

TM1Compressive Strength28 days≥ 4047 MPa

* All of the above data complies with Product Conformity Certification Scheme.

Shelf Life

6 months from the date of production

Storage Conditions

Stored properly in undamaged and unopened original sealed packaging in the dry conditions at temperature range +5 oC to +35 oC. Protect from direct sunlight, moisture and frost.

Density

Approx. 2300 kg/m3
Technical Information

Compressive Strength

Age at Test

Monoset® RXG

(with aggregate)

Typical Performance

Test Method
2 hours> 20 MPaBS 6319 : Part 2 : 1983
28 days> 40 MPaBS 6319 : Part 2 : 1983

Shear Adhesion

Age at Test

Monoset® RXG

(with aggregate)

Typical Performance

Test Method
28 days> 22 MPaBS 6319 : Part 4 : 1984

Shrinkage

Age at Test

Monoset® RXG

(with aggregate)

Typical Performance

Test Method
1–28 days

No cracks between

1 & 28 days

HKHA/MTS

Specification Part D
Clause 2.1.6

Application

Application Information

Ambient Air Temperature

> 5 oC

Application Time

Approx. 30 min (at 20 oC)
Consumption

Consumption

Approx. 60 packs/m3

Approx. 40 packs/m3 (with 20 kg 5–10 mm aggregate added per pack)
Application steps

MIXING

Mix components using drill and paddle or mechanical pan mixer close to area of use. For application thickness over 25 mm, maximum 20 kg 5–10mm aggregate can be added to each bag of Monoset® RXG powder.

APPLICATION

Trowel apply onto wet or tacky primer. Finish with float or trowel. When bedding, the underside of the component must also be primed.



CLEANING OF TOOLS

Clean all tools and application equipment with clean water immediately after use.
