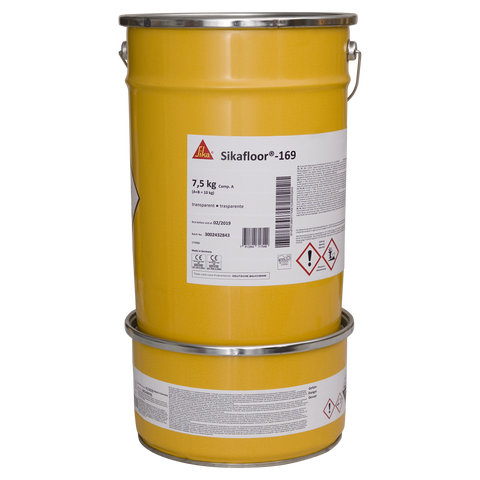

Sikafloor®-169

• Conformity with LEED v4 MRc 2 (Option 1): Building Product Disclosure and Optimization – Environmental Product Declarations
• Conformity with LEED v4 MRc 4 (Option 2): Building Product Disclosure and Optimization - Material Ingredients
• Conformity with LEED v2009 IEQc 4.2: Low-Emitting Materials - Paints and Coatings
• IBU Environmental Product Declaration (EPD)
• VOC emission certificate according to AgBB und DIBt approval requirements, eurofins
• Sikafloor®-169 is listed on the Eco-Product Directory as environmentally friendly product choice for green building initiatives. (application no.: PL-01461-2022)

• Particle Emission, Biological Stress ISO 846, Sikafloor®-169/-DecoFiller/-304 W, CSM Fraunhofer, Certificate No. SI/1008-533

• Emission Behaviour EN 13813, Sikafloor®-144/-156/-161/-264/-169/-304 W, Sikagard®-186, DIBt, Certificate No. Z-156.605-1004

• Sliding test DIN 51130, Sikafloor®-169, Roxeler, Certificate No. 020109-15-11

• Sliding test DIN 51131, Sikafloor®-169, Roxeler, Certificates No. 020108-13-30a, 020108-13-31a, 020109-15-10a, 020109-15-13a, 020109-15-4a, 020171-14-1a, 020197-15-1a, 020197-15-5a

• Coating compatibility test PV 3.10.7, Sikafloor®-169, HQM, Report No. 14-04-14201871-7

• CE Marking and Declaration of Performance to EN 13813 - Resin screed material for internal use in buildings - Sikafloor®-169

• CE Marking and Declaration of Performance to EN 1504-2 - Surface protection product for concrete - Coating - Sikafloor®-169

Epoxy

24 months from date of production

The product must be stored in original, unopened and undamaged sealed packaging in dry conditions. Always refer to packaging.

All Density values at +23 °C.

Short-term moist/wet heat^* up to +80 °C where exposure is only occasional (steam cleaning etc.).

*  No simultaneous chemical and mechanical exposure and only in combination with Sikafloor® systems as a broadcast system with ~ 3–4 mm thickness.

Resistant to many chemicals. Contact Sika Technical Services for additional information.

Mixed resin

Part A : Part B = 75 : 25 (by weight)

Mixed resin and Decodur Part C filler

Sika-CompactFloor: 1 part resin: 1 part Sikafloor®-CompactFiller

Wearing course Sika-DecoFloor: 1 part resin: 1.5 part Sikafloor®-DecoFiller

+10 °C min. / +30 °C max.

80 % max.

Beware of condensation.
The substrate and uncured applied floor material must be at least +3 °C above dew point to reduce the risk of condensation or blooming on the floor finish.

Low temperatures and high humidity conditions increase the probability of blooming.

+10 °C min. / +30 °C max.

≤4 %  parts by weight

Test method: Sika®-Tramex meter, CM-measurement or Oven-dry-method. No rising moisture according to ASTM (Polyethylene-sheet).

Before overcoating Sikafloor®-169 allow:

Times are approximate and will be affected by changing ambient conditions particularly temperature and relative humidity.

Times are approximate and will be affected by changing ambient conditions particularly temperature and relative humidity.

~ 0.15 kg/m² applied as a top coat

~ 0.7-2 kg/m² applied as a  wearing course

These figures are theoretical and do not allow for any additional material due to surface porosity, surface profile, variations in level or wastage etc. For detailed information, refer to the System Data Sheets: Sikafloor® Decodur ES-22 granite, Sikafloor® Decodur ES-26 flake, Sikafloor® Decodur EB-26 Quartz  and Sikafloor® Decodur EM-21 Compact.

Prior to mixing all parts, mix separately part A (resin) using a low speed single paddle electric stirrer (300–400 rpm). Add Part B (hardener) to Part A and mix part A + B continuously for 2.0 minutes until a uniform mix has been achieved. When parts A and B have been mixed. Using a double paddle (axis) electric stirrer (> 700 W), pan type revolving or forced action mixer or other suitable equipment (free fall mixers must not be used). Gradually add the required Decodur Part C filler or for mortars the appropriate granulometry of aggregate. Mix for a further 2.0 minutes until a uniform mix has been achieved. To ensure thorough mixing, pour materials into another container and mix again to achieve a smooth consistent mix. Excessive mixing must be avoided to minimise air entrainment. During the final mixing stage, scrape down the sides and bottom of the mixing container with a flat or straight edge trowel at least once to ensure complete mixing. Mix full units only. Mixing time for A+B = 2.0 minutes. A+B+C = 4.0 minutes.

Refer to the System Data Sheets: Sikafloor® Decodur ES-22 Granite, Sikafloor® Decodur ES-26 Flake, Sikafloor® Decodur EB-26 Quartz and Sikafloor® Decodur EM-21 Compact.

Clean all tools and application equipment with Sika® Thinner C immediately after use. Hardened material can only be removed mechanically
