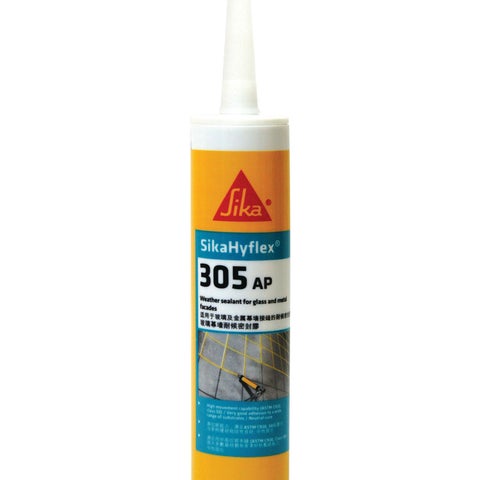

SikaHyflex®-305 AP

Weather sealant for curtain wall and metal cladding facades

SikaHyflex®-305 AP is a 1-component, moisture curing, low-modulus elastic weather sealant.

  • Very good resistance to weathering
  • Movement capability of ±50 % (ASTM C 719)
  • Very good workability
  • Good adhesion to a wide range of substrates
  • Solvent-free
  • Neutral cure

Talk to Our Experts
Product Data Sheet Show all documents

Usage

SikaHyflex®-305 AP is designed for weather proofing and sealing applications where durability under severe conditions is required. SikaHyflex®-305 AP is particularly suited for use as a weather sealant for curtain wall and metal cladding facades.

Advantages

  • Very good resistance to weathering
  • Movement capability of ±50 % (ASTM C 719)
  • Very good workability
  • Good adhesion to a wide range of substrates
  • Solvent-free
  • Neutral cure


Packaging

300 ml cartridge, 25 cartridges per box

Colour

Black, Grey

Further colour available on request

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • ASTM C 920, class 50
Product Information

Chemical Base

Neutral cure silicone

Shelf Life

SikaHyflex®-305 AP has a shelf life of 12 months for cartridges  from the date of production, if it is stored in undamaged, original, sealed packaging, and if the storage conditions are met.

Storage Conditions

SikaHyflex®-305 AP shall be stored in dry conditions, where it is protected from direct sunlight.

Density

~ 1.50 kg/l

(ISO 1183-1)
System information

Compatibility

SikaHyflex®-305 AP is compatible with most SikaHyflex® and Sikasil® silicone weather sealants, Sikasil® SG adhesives and Sikasil® IG sealants. All other sealants and adhesives have to be approved by Sika before using them in direct contact with SikaHyflex®-305 AP.

Where two or more different reactive sealants and/or adhesives are used, allow the first one to cure completely before applying the next one. For specific information regarding compatibility contact Sika technical service.
Technical Information

Shore A Hardness

~ 25 (after 28 days)

(ISO 868)

Secant Tensile Modulus

~ 0.35 N/mm2  at 100 % elongation (23 °C )

(ISO 8339)

~ 0.40 N/mm2  at 100 % elongation (−20 °C)

Elastic Recovery

~ 80 %

(ISO 7389)

Tear Propagation Resistance

~ 4.5 N/mm

(ISO 34)

Movement Capability

± 25 %

(ISO 9047)

± 50 %(ASTM C 719)

Resistance to Weathering

10

(ISO / DIS 19862)

Service Temperature

−40 °C to +150 °C

Joint Design

The joint width must be designed to suit the joint movement required and the movement capability of the sealant. The joint width shall be ≥ 6 mm and ≤ 45 mm. The joint depth shall be ≥  6 mm and ≤ 15 mm. A width to depth ratio of 2:1 must be maintained (for exceptions, see table below).

Typical joint dimensions

Joint width [mm]

Joint depth [mm]

10

6

15

8
2010
3015
4515

All joints must be correctly designed and dimensioned in accordance with the relevant standards, before their construction. The basis for calculation of the necessary joint widths are the type of structure and its dimensions, the technical values of the adjacent building materials and the joint sealing material, as well as the specific exposure of the building and the joints.

For larger joints please contact Sika technical service.

Application

Application Information

Backing Material

Use closed cell, polyethylene foam backing rods

Sag Flow

~ 2 mm  (20 mm profile, 50 °C)

(ISO 7390)

Ambient Air Temperature

+5 °C to +40 °C, min. 3 °C above dew point temperature

Substrate Temperature

+5 °C to +40 °C

Curing rate

~ 2 mm / 24 hours (23 °C / 50 % r.h.)

(CQP 049-2)

Skin Time

~ 25 minutes  (23 °C / 50 % r.h.)

(CQP 019-1)

Tack Free Time

~ 160 minutes  (23 °C / 50 % r.h.)

(CQP 019-1)
Consumption

Consumption

Joint length [m] per 600 ml foil pack

Joint width [mm]

Joint depth [mm]

10106
5158
32010
22512
1.33015
Application steps

SUBSTRATE PREPARATION

The substrate must be clean, dry, sound and homogeneous, free from oils, grease, dust and loose or friable particles. The following priming and/or pre-treatment procedures shall be followed:


Non-porous substrates
Float glass, coated glass, anodised aluminium and stainless steel have to be pre-treated using Sika® Aktivator-205, Sika® Aktivator-100 or Sika® Cleaner P. Powder coated and PVDF coated metals have to be pre-treated using Sika® Aktivator-205. For details like application and flash-off times refer to the most recent PDS of the respective pre-treatment product.


Porous substrates
Concrete, aerated concrete and cement based renders, mortars and bricks shall be primed using Sika® Primer-3 N or Sika® Primer-210. For details like application and flash-off times refer to the most recent PDS of the respective pre-treatment product.


Adhesion tests on project specific substrates must be performed prior to application. For more detailed advice and instructions please contact Sika technical service. Note: Primers are adhesion promoters. They are neither a substitute for the correct cleaning of a surface, nor do they improve the strength of the surface significantly.

CLEANING OF TOOLS

Clean all tools and application equipment immediately after use with Sika® Remover-208 and/or Sika® TopClean T. Once cured, residual material can only be removed mechanically.
