Sikadur®-52

Sikadur®-52

Low viscosity resin for injection

Sikadur®-52 is a two component system, based on high resistance epoxy resin, free of solvents.

  • Does not contain solvents.
  • It can be applied on dry or wet surfaces.
  • Usable at low temperatures.
  • Hardening without retraction.
  • High adhesion and mechanical resistance.
  • High non-brittle hardness.
  • Low viscosity Injectable with one-component systems.
Product Data Sheet Show all documents

Usage

As an injection resin with good adhesion to concrete, mortar, stone, steel and wood. Sikadur®-52 is used to fill and seal cracks and pores in structures such as buildings, bridges, industrial facilities and other structures, for example, in columns, beams, foundations, walls, pavements and water ponds. Sikadur®-52 structurally joins the concrete sections and forms an effective barrier against the infiltration of water and corrosive elements.

Advantages

  • Does not contain solvents.
  • It can be applied on dry or wet surfaces.
  • Usable at low temperatures.
  • Hardening without retraction.
  • High adhesion and mechanical resistance.
  • High non-brittle hardness.
  • Low viscosity Injectable with one-component systems.

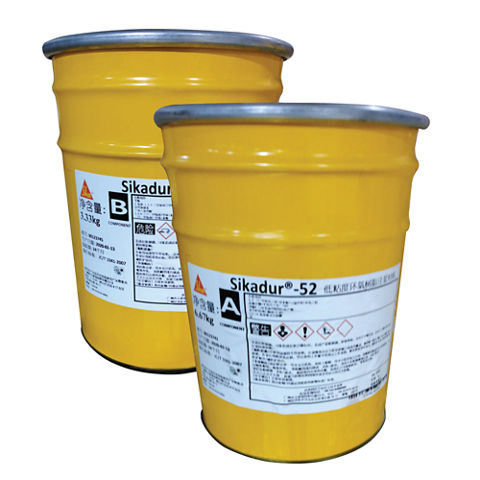

Packaging

Part A : 6.67 kg

Part B : 3.33 kg

Colour

Transparent yellow liquid (mix A + B)

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

Sikadur® 52 complies with ASTM C 881 - 78 Type I Grade 1 Class B + C.

Product Information

Shelf Life

2 years in a cool place and indoors in its original closed container.

Storage Conditions

Stored properly in undamaged and unopened original sealed packaging in cool dry conditions. Protect from direct sunlight and frost.

Density

1.1 kg/l

Viscosity

Temperature

Viscosity (mPa . s)

+ 10 °C

~ 1200

+ 20 °C

~ 430

+ 30 °C~ 220
Technical Information

Compressive Strength

52 N/mm2 (at 7 days at +23 °C) (ASTM D695-96)

Tensile Strength in Flexure

61 N/mm2 (at 7 days at +23 °C) (DIN 53452)

Modulus of Elasticity in Flexure

1800 N/mm2 (at 7 days at +23 °C) (DIN 53452)

Tensile Strength

37 N/mm2 (at 7 days at +23 °C) (ISO 527)

Tensile Adhesion Strength

In Concrete > 4 N / mm2 (concrete failure) (at 7 days at + 23 °C)

Coefficient of Thermal Expansion

8.9 x 10-5 per °C ( between -20 °C and + 40 °C) (EN ISO 1770)

Application

Application Information

Substrate Temperature

+5 °C min. / +30 °C max.

Substrate Moisture Content

Dry or wet (SSS - Saturated Superficially Dry: no water dripping)

Pot Life

Temperature

Potlife

+5 °C~ 120 minutes
+10 °C~ 80 minutes

+23 °C

~ 25 minutes

+30 °C

~ 10 minutes
Consumption

Consumption

The consumption of Sikadur®-52 depends on the width and depth of the cracks, for 1 liter of filling, 1.1 kg of Sikadur®-52 is required.
Application steps

NOTES ON INSTALLATION

Maximum crack width to be injected: 5mm.

Sikadur® 52 is suitable for dry and wet conditions but not for conditions with free water.

SUBSTRATE PREPARATION

Requirements Healthy, clean, free of oil or grease, without surface treatment or coatings.

Previous treatment for good adherence:

Concrete, mortar, stone must be carefully prepared by means of high pressure water jet or mechanical means such as roughing, etc. Cracks must be cleaned to remove dust with pressurized air.

MIXING

Mixing ratio A: B = 2: 1 (by weight); A: B = 1.8: 1 (by volume).

Add all component B to part A. Mix with an electric mixer at low speed (max. 250 rpm) for at least 3 minutes. Avoid incorporating air.

CLEANING OF TOOLS

Tools and instruments must be cleaned after use with pyroxylin thinner. The hardened product can only be removed mechanically.
