Product Data Sheet Show all documents

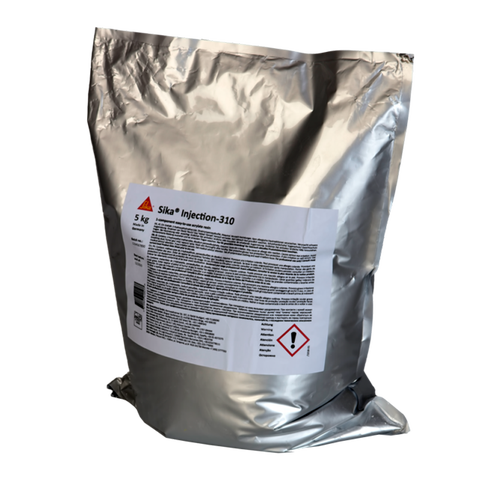

Sika® Injection-310

Sika® Injection-310

1-component powder based acrylate injection resin

Sika® Injection-310 is a polyacrylic, 1-component, powder based injection resin which is formulated to contain all the active parts in one powder. The all in one, ready to use powder, only requires mixing with water. After the addition of water the chemical reaction is activated producing a very low viscosity resin which cures to form a tough-elastic gel.

  • 1-part, all in one product
  • Activation by just adding water
  • Easy to mix compared to multicomponent resins
  • Easy to apply with 1-component pump
  • Very low viscosity
  • Equipment easy to clean, only water required
  • When cured, insoluble in water and hydrocarbons
Product Data Sheet Show all documents

Usage

  • Repair by injection of damaged waterproofing membranes (single and double layer system)
  • Sealing of construction joints via injection hoses, i.e. SikaFuko® System
  • Injection of construction and movement expansion joints


Advantages

  • 1-part, all in one product
  • Activation by just adding water
  • Easy to mix compared to multicomponent resins
  • Easy to apply with 1-component pump
  • Very low viscosity
  • Equipment easy to clean, only water required
  • When cured, insoluble in water and hydrocarbons

Packaging

Pail

Box

4 × 5 kg sealed bags in 30 L container

5 × 5 kg in box

18 containers on pallet (360 kg)

27 boxes on pallet (675 kg)

Refer to current price list for packaging variations.

Colour

White

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Compatibility test EN 12637-3, EN 1504-5, Sika® Injection-310, MPA Braunschweig, Test report No. 1201/569/18b

  • Density, Infrared Spectrum, Water Tightness, Workability tests EN 1504-5, Sika® Injection-310, MPA Braunschweig, Test report 1201/569/18a

  • Fire Behaviour Classification DIN EN 13501-1:2010-01, Sika® Injection-310, MPA Braunschweig, Test report K-2300/985/18-MPA BS

  • Water Tightness DIN EN 1504-5, Sika® Injection-310, iBMB MPA, Test report No. 1202/302/19
Product Information

Chemical Base

1-part powdered acrylate

Shelf Life

12 months from date of production

Storage Conditions

The product must be stored in original, unopened and undamaged sealed packaging in dry conditions. Always refer to packaging.

Density

~ 1.12 g/cm3 (mixed material +20 °C)

(EN ISO 2811-1)

Viscosity

~ 15 mPa·s (Mixed material +20 °C)

(EN ISO 3219)
Technical Information

Chemical Resistance

Contact Sika Technical Services for specific information regarding resistance to hydrocarbons, alkalis or other chemicals.

Application

Application Information

Mixing Ratio

5 kg bag of Sika® Injection-310 activated with 7.5 L or 10 L of water

Ambient Air Temperature

+5 °C min./ +40 °C max.

Substrate Temperature

+5 °C min./ +40 °C max.

Gel time

Temperature

Time

+10 °C

~ 230-270 min

+15 °C

~ 130–200 min

+23 °C

~ 42–60 min

+30 °C

~ 24–35 min

+35 °C

~ 20–30 min

Values for activation with 7.5 L–10 L of water. Temperature of freshly activated resin mix.

Note: Gel time is laboratory tested with 100 ml samples with preconditioned parts according to the temperature and may vary from site conditions. Check gel time according to site conditions before use.
Consumption

Yield

~ 11.3 L or 13.8 L of injectable resin per 5 kg bag
Application steps

MIXING

Mixing sequence

  1. Pour 7.5 L or 10 L of water into a clean container.
  2. Pour 5 kg of Sika® Injection-310 powder slowly into the water while stirring. Stir with an electric single mixer with a mixing paddle (e.g. Colomix DLX 90S).
  3. Mix at high speed for a minimum of 3 minutes ensuring all the powder and water is mixed thoroughly.

CLEANING OF TOOLS

Clean all tools and application equipment with water.
