Sikaplan® WP Trumpet Flange
Preformed sealing element for anchor penetrations

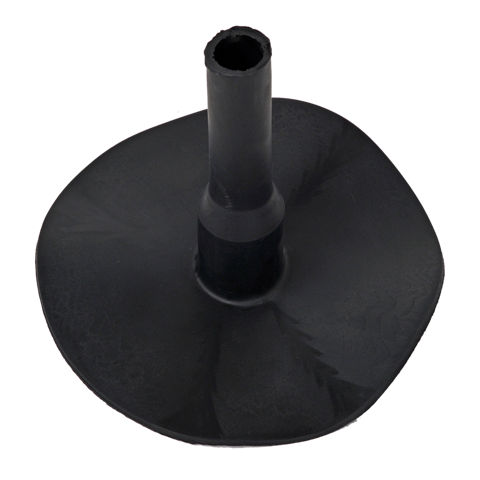

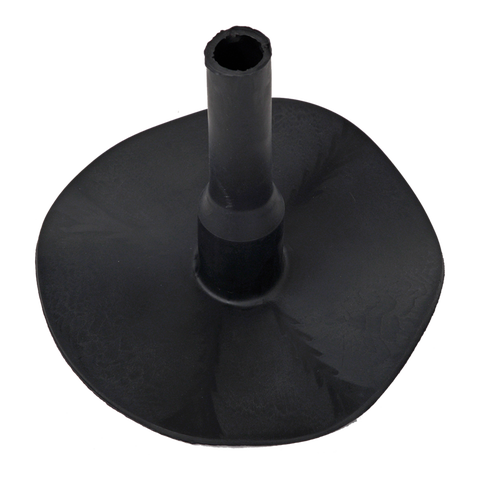

Sikaplan® WP Trumpet Flange is a preformed PVC-p flange element with round base plate and pipe.
- Compatible to all Sikaplan® WP membranes with a base of PVC-p by heat welding
- Flexible and versatile
- For various anchor and rebar diameters
- Easy and quick application
Overview
Usage
The Product is used as a:- Sealing element for anchor and rebar penetrations through PVC membrane systems
- Injection flange for PVC membrane systems
Advantages
- Compatible to all Sikaplan® WP membranes with a base of PVC-p by heat welding
- Flexible and versatile
- For various anchor and rebar diameters
- Easy and quick application
Packaging
40 pcs / cardboard box
Colour
Trumpet-like preformed element with black colour
Product Details
Chemical Base
PVC-p
Shelf Life
5 years shelf life from date of production.
Storage Conditions
The Product must be stored in original unopened and undamaged packaging in dry conditions.
Dimensions
The dimensions of the Product are shown in the following diagram:
Weight
~150 g per piece
System Structure
Ancillary products for usage as sealing element for anchor penetrations:
Sikaflex®-11 FC+
Jubilee clips to seal penetration
Ancillary products for usage as injection flange:
Hose nipple on base of metal or plastic, to be inserted into trumpet flange
Metal clamping ring to seal hose nipple
Injection hose, or metal pipe with inner winding
Ambient Maximum Temperature of Liquids
Service temperature | +35 °C |
Application
Ambient Air Temperature
Minimum | +5 °C |
APPLICATION
IMPORTANT
Application by trained personnel
The application of this Product must only be carried out by an applicator that is trained or approved by Sika. The applicator must also be experienced in this type of application.
FOR USAGE AS SEALING ELEMENT FOR ANCHOR PENETRATIONS
Preconditions
Sikaplan® sheet membrane is installed according to the valid Method Statement and standard detail drawings for basement and tunnel waterproofing.
Installed Sikaplan® sheet membrane must be dry and clean.
- Cut a hole into the waterproofing membrane at rock bolt area.
- Clean the area to be welded which must be free from any dust, oil, grease or contaminate.
- Place and fully weld the Sika trumpet flange to the waterproofing membrane.
- Tightly close the trumpet shaft around the rock anchor using Sikaflex®-11 FC+ sealant and jubilee clips.
FOR USAGE AS INJECTION FLANGE
- Spotwise weld the base of the flange onto the sheet membrane using a heat welding tool.
- Fix the hose nipples into the pipe by clamping with a jubilee clip.
- Connect the fixed hose nipples to the injection pipe. Note Ensure that the injection pipe is fixed securely.
