Sikaplan® WP 1120-20 HL

PVC WATERPROOFING MEMBRANE FOR BASEMENT, SHAFT AND VARIOUS TUNNELS, SUCH AS CUT & COVER TUNNEL

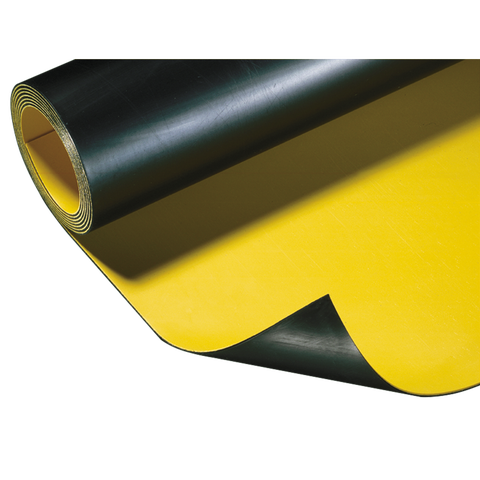

Sikaplan® WP 1120-20HL is a homogenous sheet waterproofing membrane with a yellow signal layer, based on polyvinylchloride (PVC-P)

  • Based on virgin material with consistent quality
  • With signal layer to indicate damages
  • High resistance to aging
  • High tensile strength and elongation
  • Resistant to natural aggressive mediums in ground water and soil
  • High resistance to mechanical impact
  • High dimensional stability
  • High flexibility in cold temperatures
  • Optimized workability, thermally weldable
  • Suitable for installation on weak substrate
  • Can be installed on damp and wet substrate
  • Sikaplan WP 1120-20HL is listed on the Eco-Product Directory as environmentally friendly product choice for green building initiatives. (Application No : PL-00975-2021)
Talk to Our Experts
Product Data Sheet Show all documents

Usage

Waterproofing of tunnels, basement and all kinds of below ground structures against groundwater.

Advantages

  • Based on virgin material with consistent quality
  • With signal layer to indicate damages
  • High resistance to aging
  • High tensile strength and elongation
  • Resistant to natural aggressive mediums in ground water and soil
  • High resistance to mechanical impact
  • High dimensional stability
  • High flexibility in cold temperatures
  • Optimized workability, thermally weldable
  • Suitable for installation on weak substrate
  • Can be installed on damp and wet substrate
  • Sikaplan WP 1120-20HL is listed on the Eco-Product Directory as environmentally friendly product choice for green building initiatives. (Application No : PL-00975-2021)

Packaging

Sikaplan® WP 1120-20HL standard rolls are wrapped individually in a yellow PE-foil.

The roll dimension is 2.0 mm (Thickness) x 2.0 m (Width) x 15.0 m (Length).

Roll weight is around 78 kg/roll.

Colour

Top layer: yellow
Bottom layer: dark grey

Product Details

Product Information

Shelf Life

5 years from date of production in unopened, undamaged and original packaging.

Storage Conditions

Rolls must be stored in the original package with a horizontal position on pallet and protected from direct sunlight, rain and snow. Do not stack pallets of rolls during transport or storage.

Visible Defects

Pass

EN 1850-2

Overall Thickness

2.0 (-5/+10%) mm

EN 1849-2

Straightness

≤ 75 mm/10 m

EN 1848-2

Mass per Unit Area

~ 2.600 (-5/+10%) kg/m2

EN 1849-2
System information

System Structure

Ancillary products:
- Sikaplan® WP PVC laminated metal for pieces
- Sikaplan® WP Disk C with Wahser
- Sika® Waterbar, Type AR and DR for fixing pieces and waterproofing concrete joints
Technical Information

Resistance to Impact

≥ 750 mm

EN 12691

Resistance to Static Load

≥ 20 kg

EN 12730 (Method B 24 h / 20 kg)

Tensile Strength

Longitudinal (MD)

17.0 (±2.0) N/mm2

Transversal (CMD)

16.0 (±2.0) N/mm2

Elongation

Longitudinal (MD)

≥ 300 %

Transversal (CMD)

≥ 300 %

Tear Strength

≥ 500N (Nail shank)

EN 12310-1

Foldability at Low Temperature

-25 °C

EN 495-5

Water Tightness

Pass

EN 1928 B

Accelerated Ageing in Alkaline Environment Tensile Strength

Pass

Appendix C (24 weeks/90°C)
EN 12311-2

Exposure to Bitumen

No performance determined

EN 1548 (28d/70°C)
EN 1928 A

Durability of Water Tightness Against Chemicals

Pass

EN 1847 (28d,23°C)
EN 1928 B (24h/60kPa)

Dimensional Change After Heat

≤ 2 %

EN 1107-2

Durability of Water Thightness Against Ageing

Pass

EN 1296(12 weeks)
EN 1928 B (24h/60kPa)

Reaction to Fire

Class E

EN 13501-1

Application

Application Information

Ambient Air Temperature

+5 °C min./ +35 °C max.
Application steps

SUBSTRATE QUALITY

In-situ concrete:
Clean, sound and dry, homogeneous, free from oils and grease, dust and loose or friable particles.

Shotcrete:

The profile of the shotcrete surface must not exceed a ratio of length to depth of 5:1 and its min. radius must be 20 cm. The shotcrete surface must not contain broken aggregates. Any leaks must be sealed with Sika® waterproof plugging mortar, or drained with a Sika® FlexoDrain system. Where necessary to achieve the desired profile/surface, apply a fine sprayed concrete layer on the shotcrete surface with a min. thickness of 3-5 cm and aggregate diameter not exceeding 8 mm. Steel (girders, reinforcement mesh, anchors, etc.) must also be covered with a minimum of 4 cm fine sprayed concrete. The shotcrete surface must be clean (no loose stones, nails, wires, etc.). A polypropylene geotextile (≥ 500 g/m2) or a compatible drainage layer must be installed prior to the Sikaplan® WP 1120-20 HL membrane installation.
