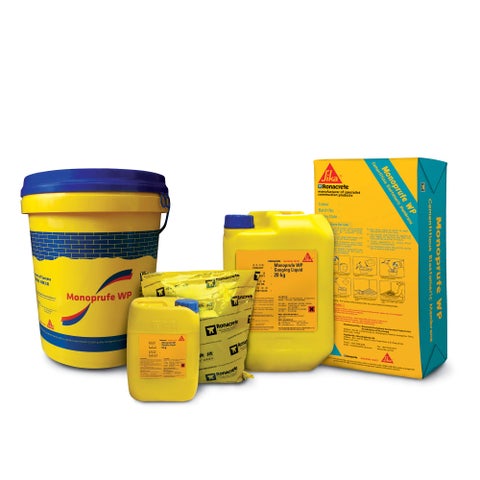

Monoprufe® WP

Elastic Cementitious Waterproofing Membrane

Monoprufe® WP is a high performance cold applied cementitious waterproofing membrane. Monoprufe® WP is used in swimming pools, tanks and basements to contain or exclude water and will accommodate a wide range of structural movement within the substrate. Supplied as a two component material, Monoprufe® WP is a blend of polymers, cements, graded fillers and chemical binders. The two components are simply mixed at site to form a highly workable coating, which can be brushed or roller applied to the prepared substrate. Monoprufe® WP is designed as an elastomeric waterproof membrane for use under a screed, render, tiling or tanking system.

  • Highly elastic
  • Excellent adhesion qualities
  • Easy to use
  • Water based
  • Low VOC
  • Can contribute to LEED certification
Product Data Sheet Show all documents

Usage

  • Below ground structures
  • Internal and external application
  • Basements, swimming pools, ponds, tanks, balconies, roofs
  • Suitable for use on concrete, brickworks, blocks, render
  • Window frame surroundings
  • Curtain walls and claddings

Advantages

  • Highly elastic
  • Excellent adhesion qualities
  • Easy to use
  • Water based
  • Low VOC
  • Can contribute to LEED certification

Packaging

11.25 kg pack (6.25 kg powder & 5 kg liquid)

45 kg pack (25 kg powder & 20 kg liquid)

Colour

Dark grey

Brick red



Product Details

Product Information

Shelf Life

9 months from the date of production

Storage Conditions

Stored properly in undamaged and unopened original sealed packaging in the dry conditions at temperature range +5 oC to 35 oC. Protect from direct sunlight and frost.
Technical Information

Shore A Hardness

79

ASTM D2240-05

Tensile Strength

Approx. 2.0 N/mm2ASTM D412-16

Tensile Adhesion Strength

Approx. 2 N/mm2ASTM D4541-09

Water Absorption

Age at Test

Monoprufe® WP

Typical Performance

Test Method
28 days0.0 ml/m2/secInitial Surface
Absorption Test

Water permeability

0 K(m/s)

Water Penetration Under Pressure

0 mm at 50 m head of water

DIN 1048:Part 5:1991

Permeability to Water Vapour

~0.12 g/h.m2ASTM E96-12

Application

Application Information

Ambient Air Temperature

> 5 oC

Pot Life

Approx. 80 minutes
Consumption

Consumption

1 kg/m2/coat; apply two coats
Application steps

MIXING

Pour all of the liquid component into a clean dry mixing container and mix using a slow speed drill fitted with a paddle. Slowly add the powder component into the liquid and continue to mix. When all of the powder has been added, increase the mixing speed and continue to mix to produce a lump free slurry.

APPLICATION

Brush or roller apply Monoprufe® WP in two coats. The second coat should be applied at right angles to the first and after the first coat has cured for 2–4 hours.

CLEANING OF TOOLS

Clean all tools and application equipment with clean water immediately after use.
